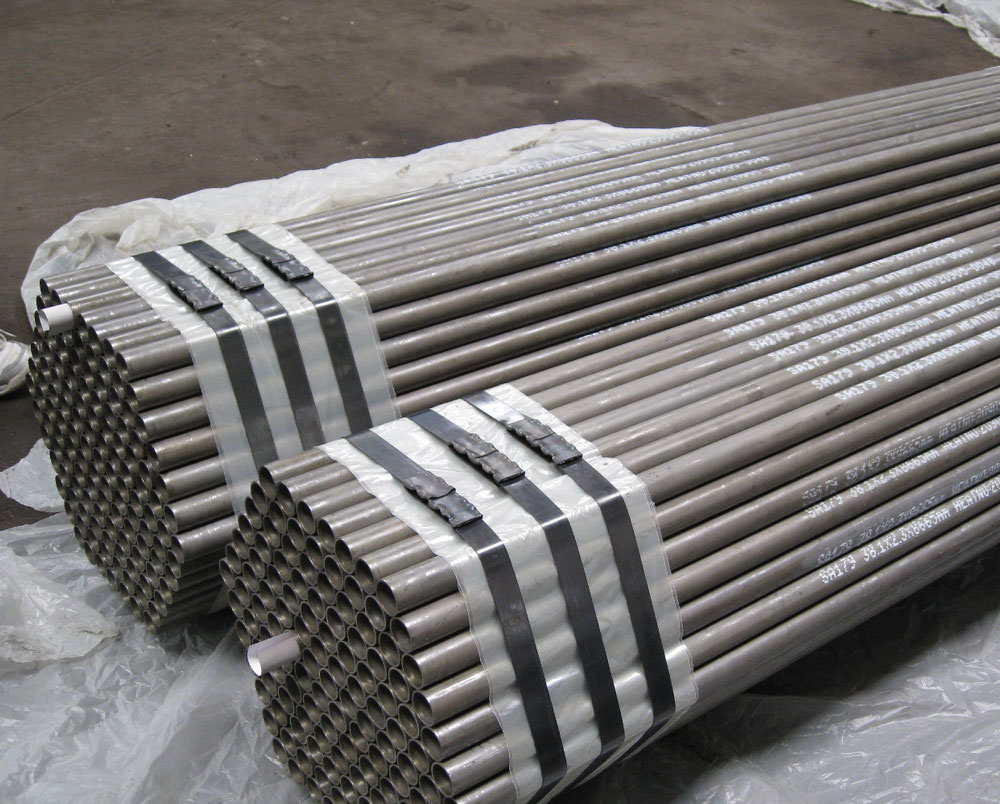

ALLOY STEEL PIPE GRADES
ALLOY STEEL PIPE GRADES
PED Approved Manufacturer & Supplier of Alloy Steel Pipe, Alloy Steel Heater Tubes, Alloy Steel ERW Pipe, Alloy Steel Heat Exchanger Tube,Alloy steel seamless pipes manufacturers in india,Alloy Steel Heat Exchanger Tubes Manufacturers in India,IBR Approved Pipes, Alloy Steel EFW Pipe, Alloy Steel Welded Pipe
Chrome Moly ASME SA 335 Pipe known as Alloy Steel Pipe is reasonable choice for High Pressure Loading & High Temperature Service, Indian Boiler Regulations,alloy steel material suppliers
click here for Latest Price list of ASTM A335/ASME SA 335 P5, P9, P11, P22, P91 Seamless Pipes & Tubes Suppliers & Manufacturer In India, Alloy Steel pipe Available in Size Range of 1/2″ NB to 36″ NB
A335 Alloy Steel Seamless Pipes & Tubes | ASTM A335 | GR P5 | P9 | P11 | P22 | P91
Compound steel reliable channels producers in india | composite steel tubes makes in india| Alloy Steel Heat Exchanger Tubes Manufacturers in India | IBR Approved Pipes | Indian Boiler Regulations Are you hunting down Prime quality and High Grade Alloy Steel Seamless or welded Pipe for high Pressure stacking or High temperature Applications, Blossom Steel and Engineering Co. is one of most trusted Manufacturers,Suppliers and exporters of Ferritic Alloy-Steel Pipe since 1980, Blossom Steel and Engineering Co. is known as an Experts in Manufacturing Alloy Steel Boiler Tubes, Alloy Steel Heat Exchanger tubes, Heater Tubes and Capillary Tubes.
Sprout Steel and Engineering Co. is a primary general supplier of ASTM A335/ASME SA335 P5, P9, P11, P22, P91 survey amalgam steel channels and composite steel tubes,currently we are conveying to more than 80 countries and developed our business orchestrate in Malaysia, Nigeria, Egypt, South Africa, Tanzania, Kenya, Algeria,Sudan, Uganda, Morocco,Ghana, Mozambique, Angola, Gabon,Russia, Germany, Turkey, France, United Kingdom, Italy,Spain, Netherlands, Iran, Iraq, Saudi Arabia, United Arab Emirates, Israel, Jordan,Oman, Kuwait, Qatar,Bahrain,Bangladesh,China, Indonesia, Japan, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand,Vietnam,Brazil, Colombia,Argentina, United States, Mexico, Canada and Australia.
We are had some mastery in offering precision assembled amalgam steels, which are used as a piece of various building applications and can be benefitted in various assessments like ASTM A335 Alloy Steel Pipe in audit P1, P2, P5, P9, P11, P12,P22, P23, P91, P92 and ASTM A213 Alloy Steel Pipe in survey T2, T5, T5b,T5c,T9, T11, T12, T22, T23, T91, T92 . these assessments are open as Alloy Steel Pipe.
Blend Steel contains liberal measures of segments other than carbon, for instance, nickel, chromium, silicon, manganese, tungsten, molybdenum, vanadium and confined measures of other typically recognized segments, for instance, manganese, sulfur, silicon, and phosphorous. Extension of such alloying segments is as a general rule for the motivation to fabricate hardness, quality or mixture resistance.Pipes made of compound steel have phenomenal execution properties. These are generally made for essentialness related applications including oil and gas exhausting and are subjected to stresses in machine parts. Amalgam Steel Tubes are furthermore used as a piece of consistently life, considering the private, capable or present day needs. Starting late, the enthusiasm for compound steel tubing has been growing close by the money related advancement..
Blossom Steel & Engineering Co. Manufacture & export complete range of A335 pipe,we are exporting & marketing under our registered brand name Blossom Steel & Engineering Co.
|
Size Range
|
:
|
1/8″ – 26″
|
|
Schedules
|
:
|
20 SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
|
|
Standards
|
:
|
ASME, ASTM
|
|
Type
|
:
|
Seamless / ERW / Welded / Fabricated / LSAW Pipes
|
|
Form
|
:
|
Round, Square, Rectangular, Hydraulic Etc.
|
|
End
|
:
|
Plain End, Beveled End, Treaded.
|
|
Length
|
:
|
Single Random, Double Random & Cut Length.
|
Unscheduled heavy wall pipe thicknesses also readily available up to 4 inches.
ASTM A335 Alloy Steel Seamless Pipes & Tubes Specification
Alloy Steel Pipe ASTM A335 GR P5 | P9 | P11 | P22 | P91 | P91 with IBR Certified (ASTM A335 / A335M – 11 Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service)
ASTM A335 Alloy Steel Seamless Pipes
This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Grade P2 and P12 steel pipes shall be made by coarse-grain melting practice.
ASTM A335 GR P5 | GR P9 | GR P11 | GR P22 | GR P91.
Name: ASTM SA335 Alloy Steel Tubes for boilers, superheaters and heat exchangers
Size (mm): O.D.: 28-168; W.T.: 2∼30; L: max 12000
Description:
1. Specifications: ASTM A335 (ASME SA335)
2. Specifications: diameter 320 to 127 mm; thickness: 0.4 to 12.7 mm; length: 6 m and above; and other specifications in accordance with customer requirements.
Features Specifications:
|
Standard
|
Steel Code
|
Tensile Strength (MPa)
|
Yield Strength (MPa)
|
Elongation Percentage(%)
|
Impact Power(J)
|
Rigidity
|
|
ASME SA335
|
SA335 P11
|
≥415
|
≥205
|
≥22
|
≥35
|
≤163HB
|
|
SA335 P12
|
≥415
|
≥220
|
≥22
|
≥35
|
≤163HB
|
|
|
SA335 P22
|
≥415
|
≥205
|
≥22
|
≥35
|
≤163HB
|
|
|
SA335 P5
|
≥415
|
≥205
|
≥22
|
≥35
|
≤187HB
|
|
|
SA335 P91
|
585∼760
|
≥415
|
≥20
|
≥35
|
≤250HB
|
|
|
SA335 P92
|
≥620
|
≥440
|
≥20
|
≥35
|
≤250HB
|
ASTM A213 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Heat-Exchanger Tubes
ASTM A213 Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, Heat-Exchanger Tubes.
Boiler tube accord to standard ASTM SA213 / A213 – Grades T5, T9, T11, T22, T91
Foreign boiler tube Standard:
- GB3087 – Chinese National Standard
- GB5310 – Chinese National Standard
- ASME SA106 – American Boiler and Pressure Vessel Code
- ASME SA333 – American Boiler and Pressure Vessel Code
- ASME SA335 – American Boiler and Pressure Vessel Code
- DIN17175 – German industrial standard
- EN10216-2 – European Pressure Piping
The main production steel grades:
10 , 20 , 20G , 20MnG , 25MnG , 15CrMoG , 12Cr2MoG , 12Cr1MoVG , 10Cr9Mo1VNb , SA106B ,SA106C , SA333 I level, SA333 VI level, SA335 P5 , SA335 P11 , SA335 P12 , SA335P22 , SA335 P91 ,SA335 P92 , ST45.8 / Ⅲ , 15Mo3 , 13CrMo44 , 10CrMo910 , 15NiCuMoNb5-6-4, etc.
Boiler and heat exchanger tube
Standard :
JIS G3461 —- Japanese Industrial Standard
JIS G3462 —- Japanese Industrial Standards
Uses :
For the boiler pipes, tobacco pipes, superheater tubes, air preheater tubes.
The main production steel grades :
STB340 , STB 410 , STBA22 , STBA23 so on.
|
Type of Steel Pipes
|
OD(D)
|
WT(S)
|
||
|
Cold Drawn Steel Pipe
|
OD(mm)
|
Tolerance (mm)
|
Wall Thickness(mm)
|
Tolerance (mm)
|
|
>30∼50
|
±0.3
|
>3∼20
|
±10%
|
|
|
>114∼159
|
±0.8%
|
≤30
|
±10%
|
|
|
>159∼219
|
±1.0%
|
|||
|
Hot Rolled Steel Pipe
|
>219∼457
|
±1.0%
|
≤20
|
+10%,-12.5%
|
|
>20∼40
|
+10%,-10%
|
|||
Material & Manufacture
Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.
Heat Treatment
- A / N+T
- N+T / Q+T
- N+T
Mechanical Tests Specified
- Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test
- For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.
- For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.
Notes for Bend Test:
- For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.
- Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.
- The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.
Blossom Steel & Engineering Co. is well known Supplier of Alloy Steel Pipe in following industries:
- Chemical & fertilisers
- Power Generation
- Oil and Gas
- Fabrication and Construction
- Manufacturing
Blossom Steel & Engineering Co. is maintain huge ready stock of following Grades Of Alloy Steel Pipe
|
ASTM A335 Alloy Steel Pipe
|
ASTM A213 Alloy Steel Pipe
|
