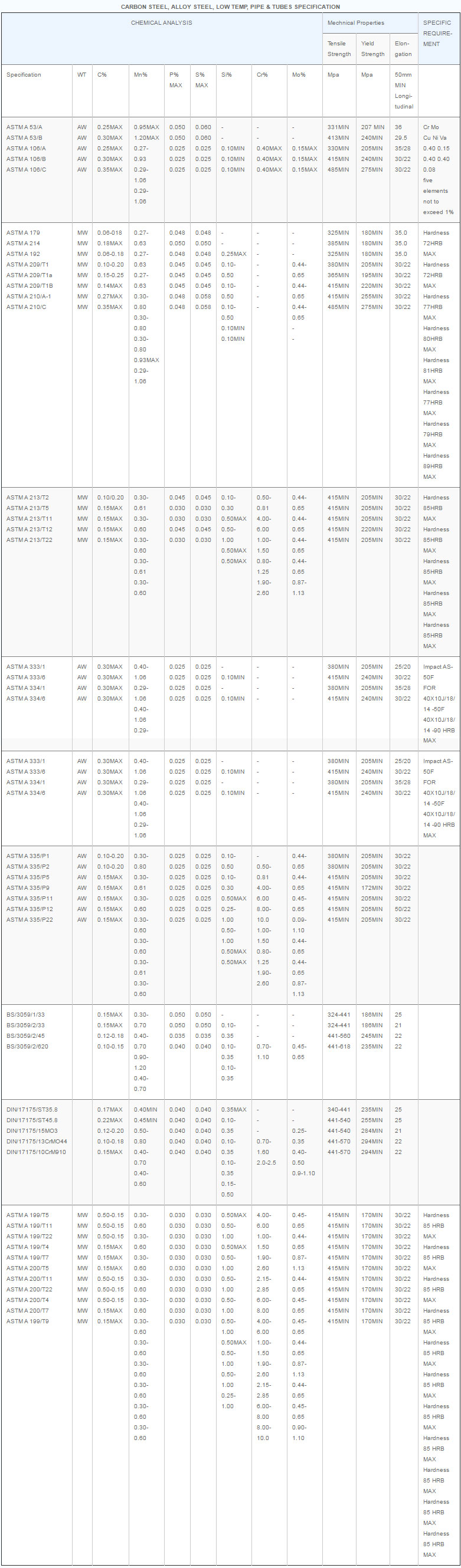

CARBON STEEL, ALLOY STEEL, LOW TEMP, PIPE & TUBES SPECIFICATION

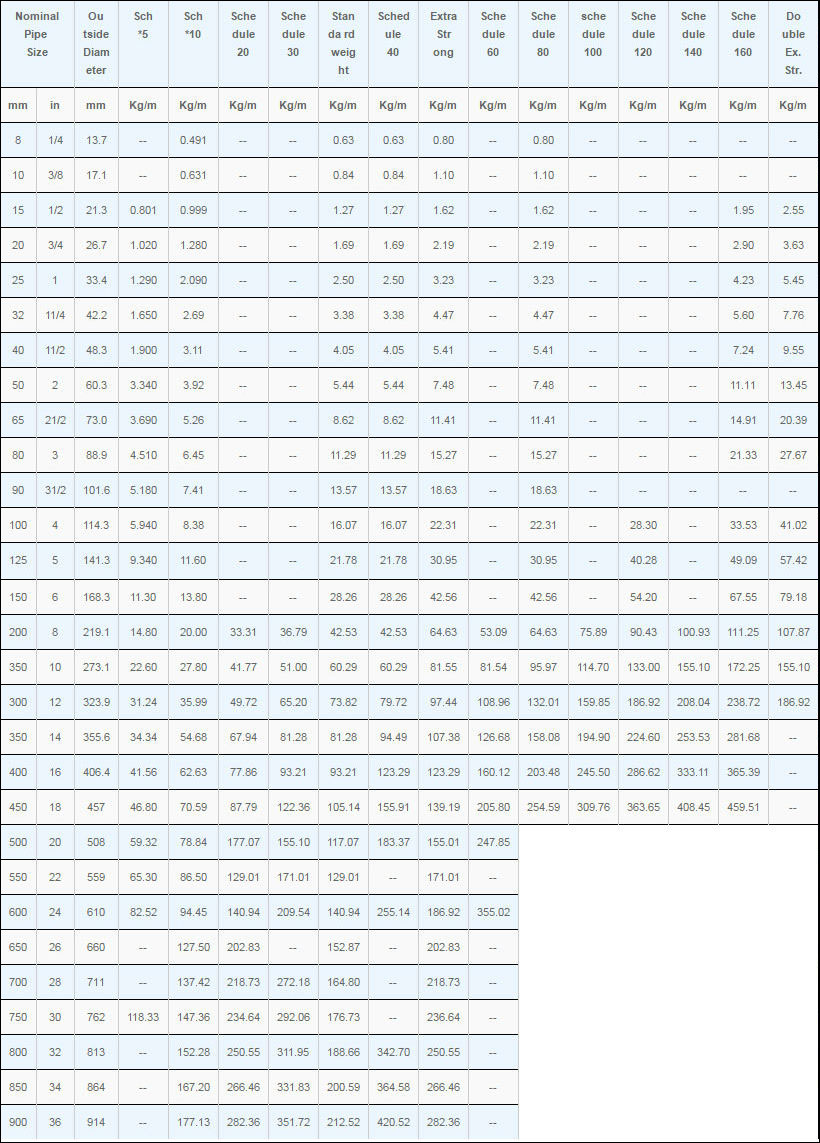

Weight & Dimensions of Schedule Pipe

Line Pipe Weight

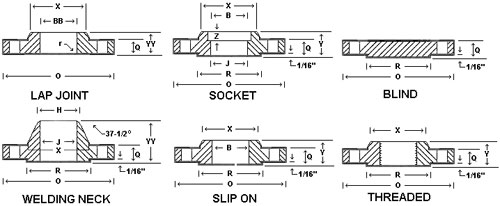

150 LB. FLANGES

300 LB. FLANGES

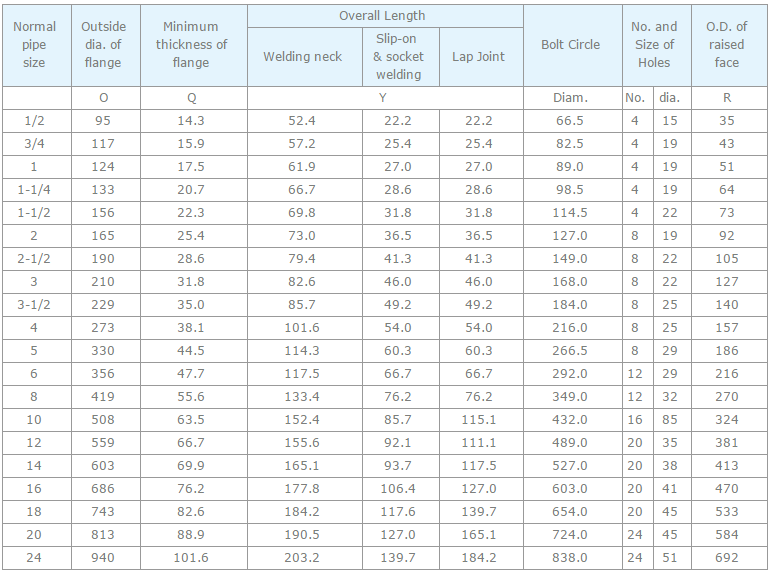

600 LB. FLANGES

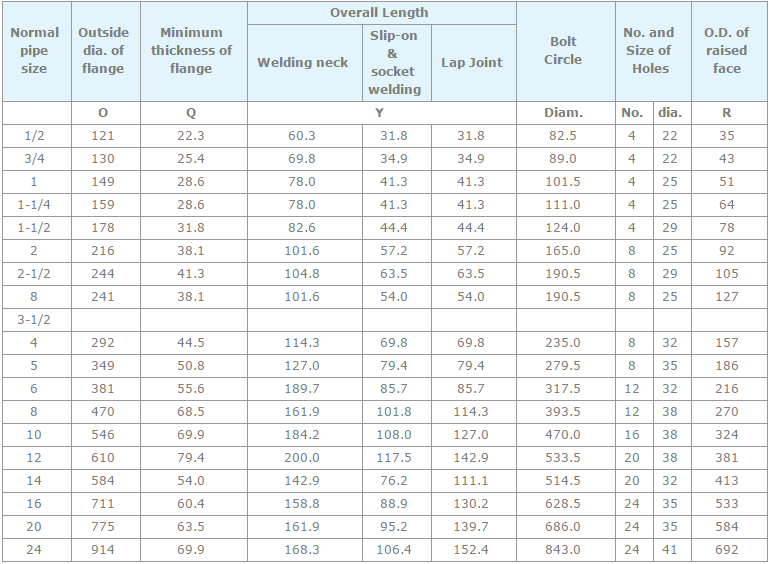

900 LB. FLANGES

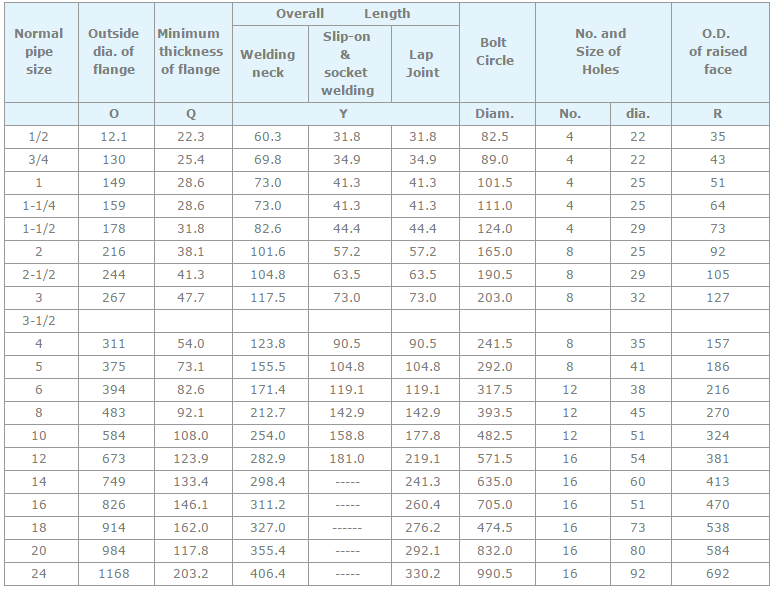

1500 LB. FLANGES

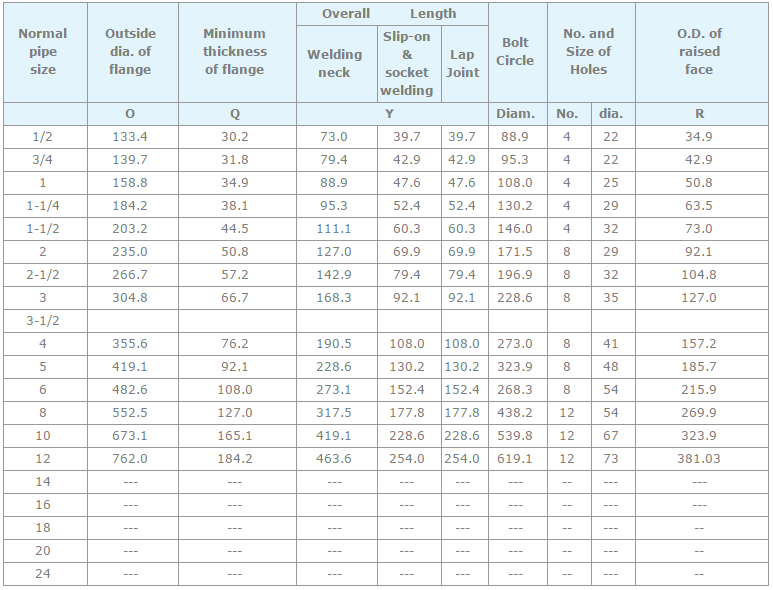

2500 LB. FLANGES

WELDING NECK FLANGE BORES

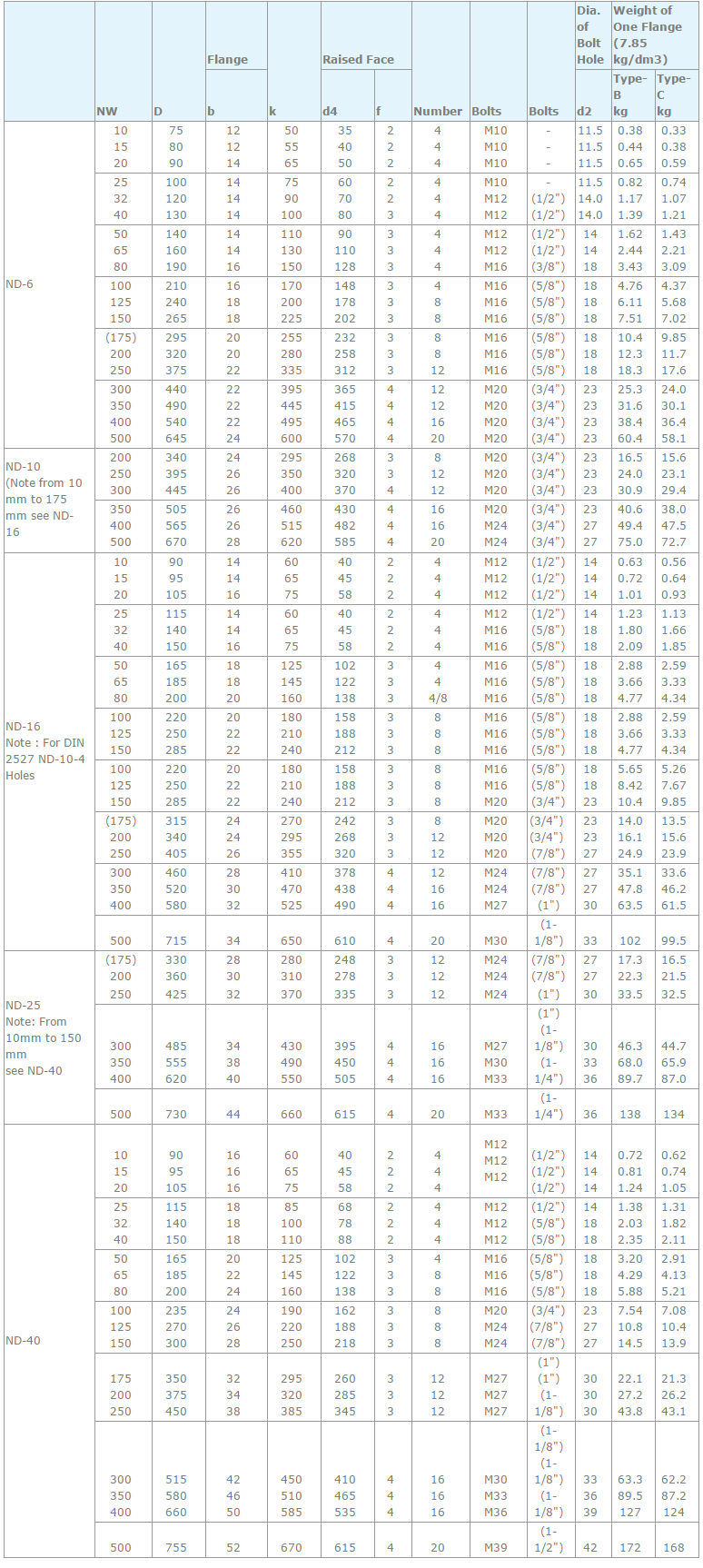

DIN 2527

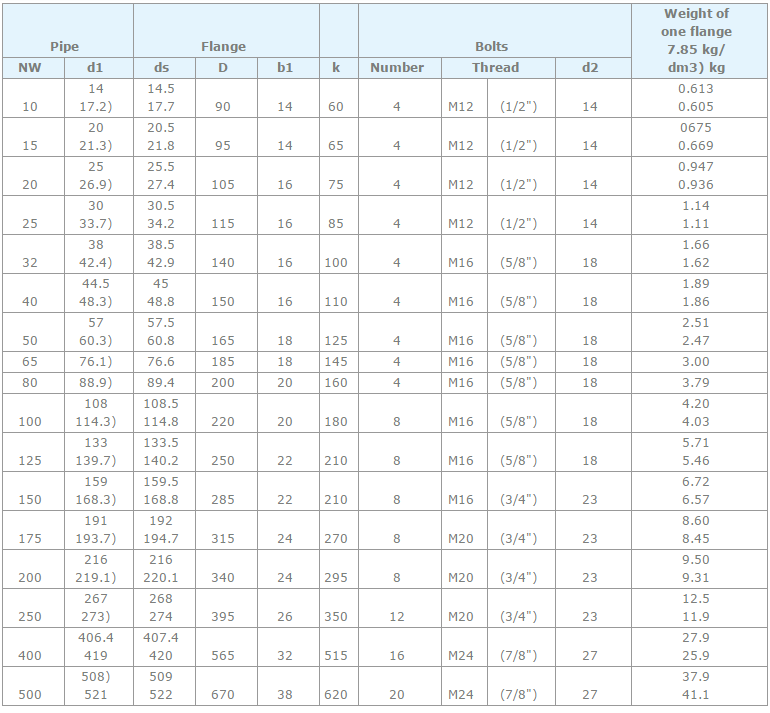

DIN 2576 FLANGES

DIN 2632 WELDING NECK FLANGES FOR NOMINAL PRESSURE 10

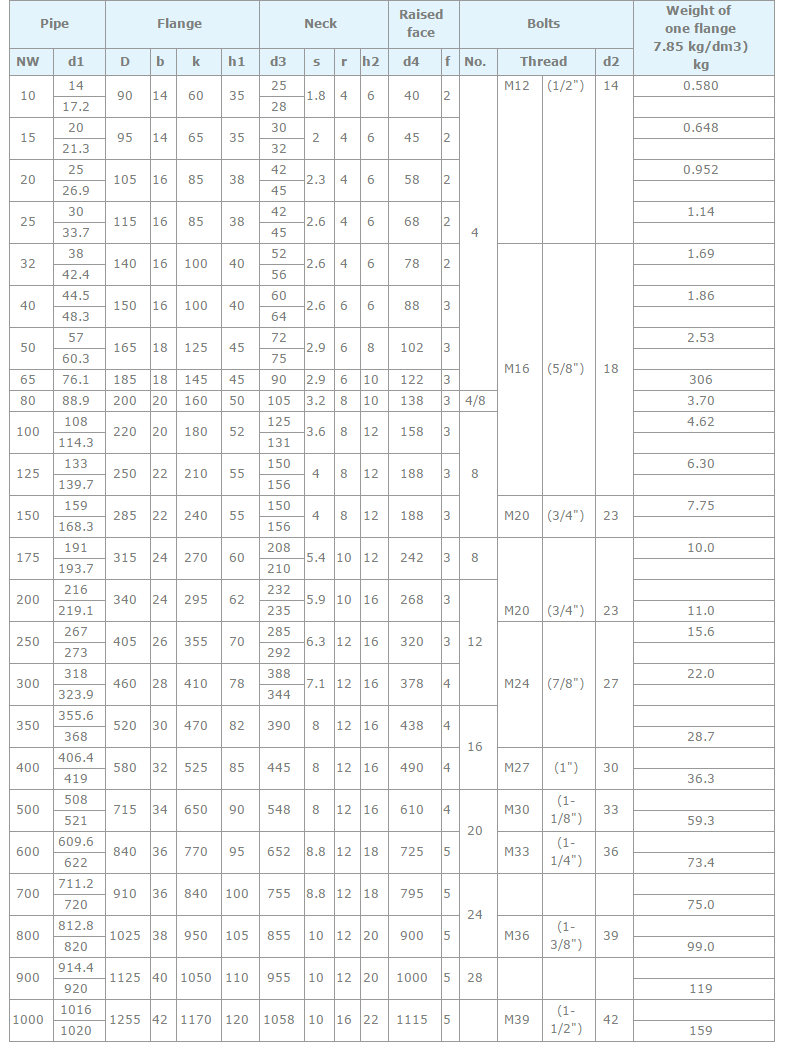

DIN 2633 WELDING NECK FLANGES NOMINAL PRESSURE 16

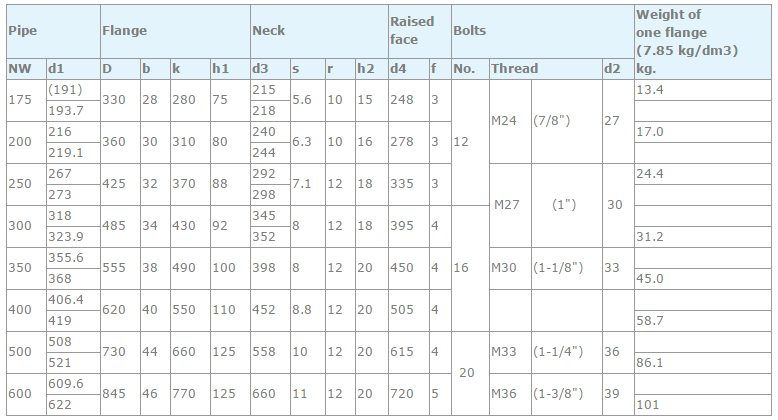

DIN 2634 WELDING NECK FLANGE NOMINAL PRESSURE 25

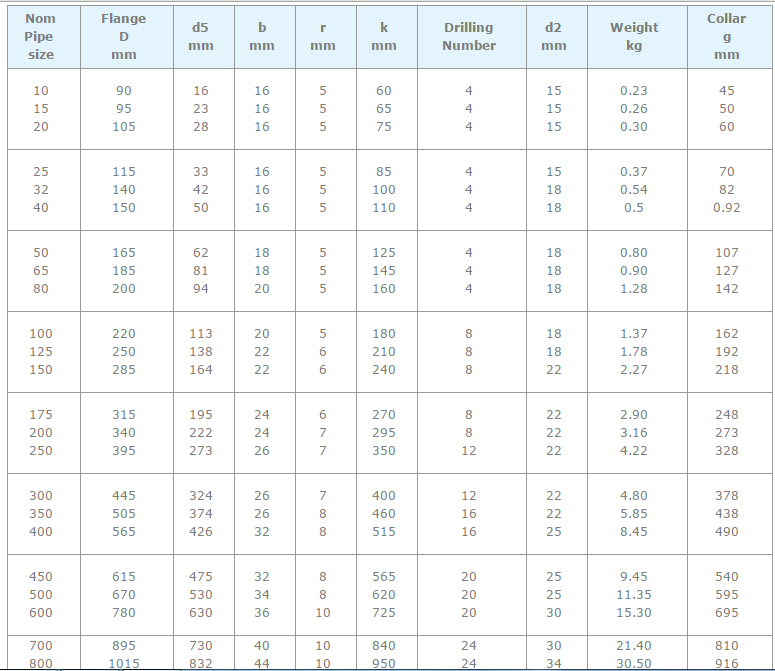

DIN 2642, DIN Connections LOOSE FLANGE FOR FLANGE COLLAR PN 10

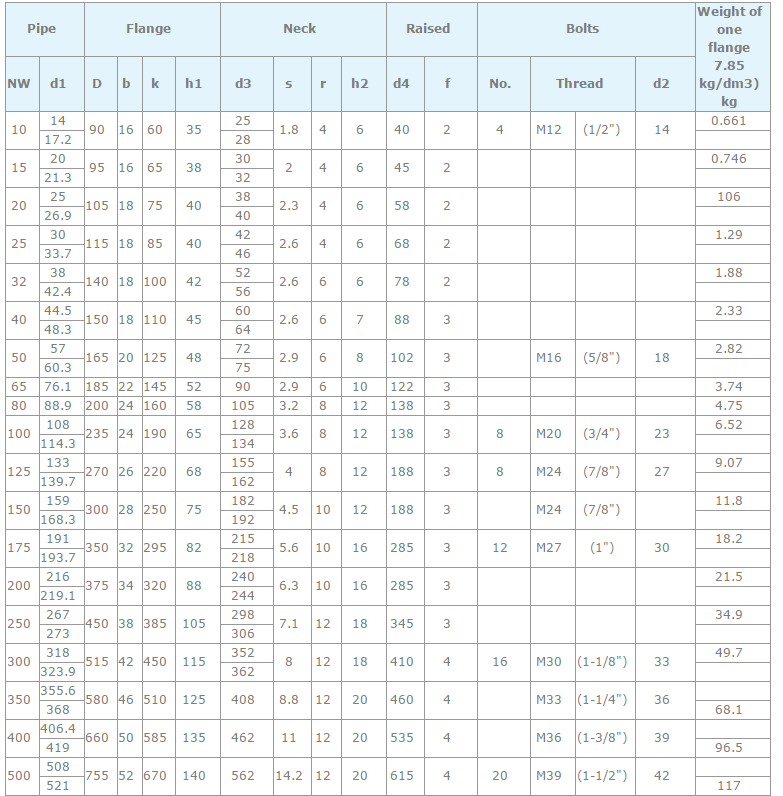

DIN 2635 WELDING NECK FLANGES NOMINAL PRESSURE 40

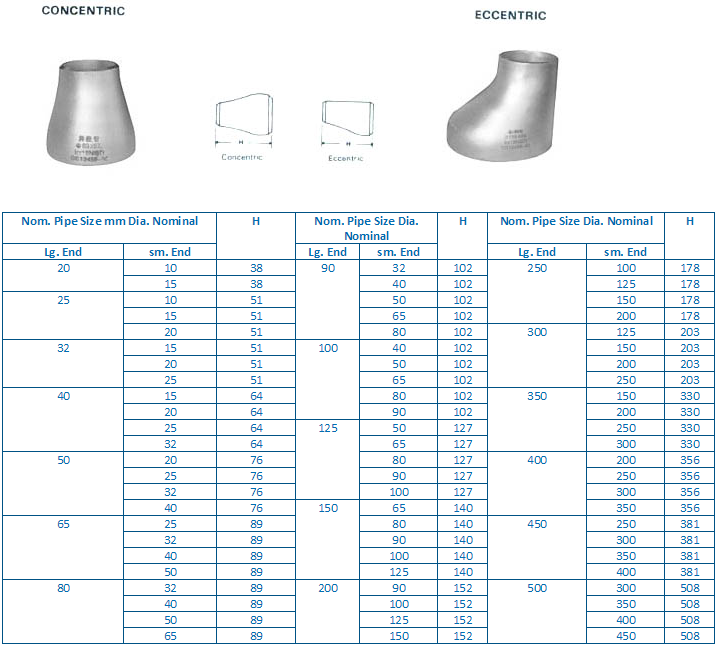

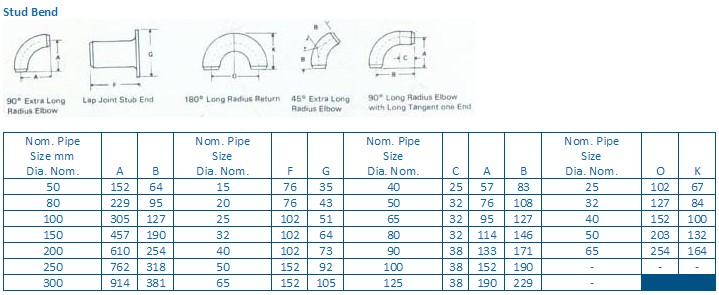

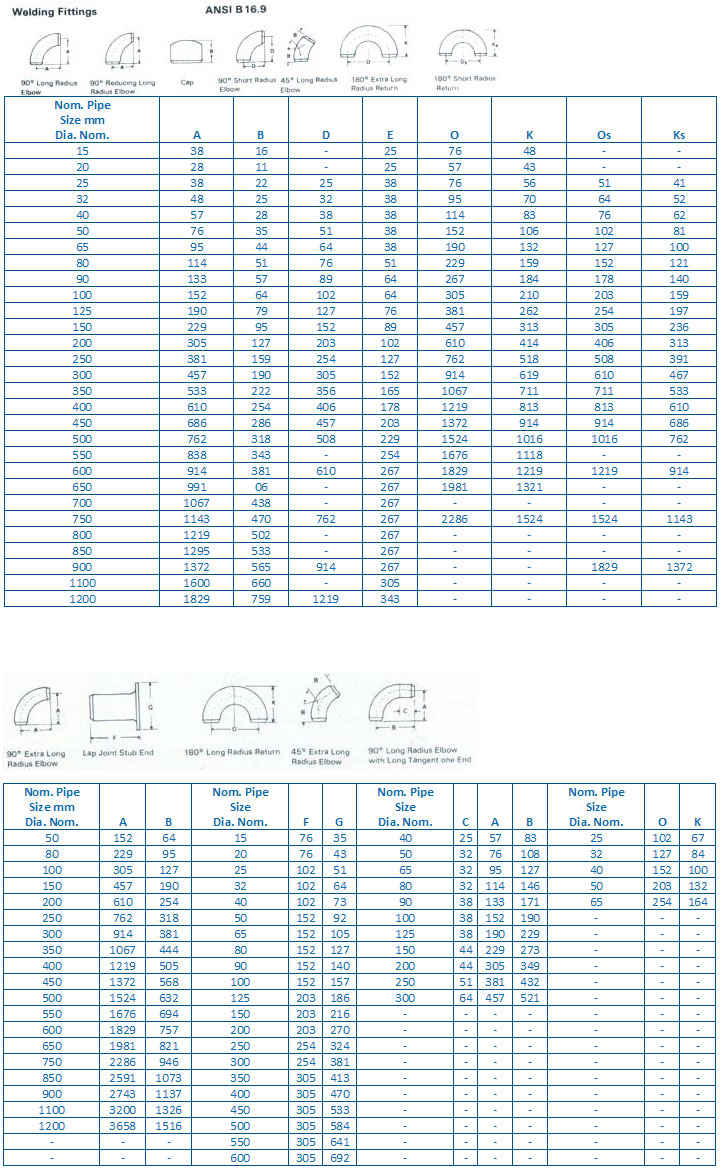

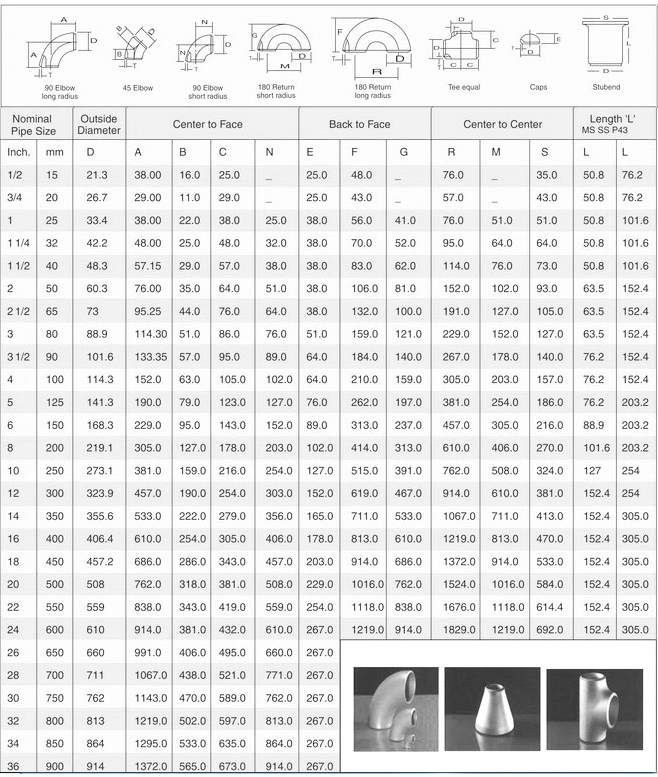

BUTTWELD FITTINGS DIMENSIONAL STANDARD ANSI B-16.9, B-16.28, MS SS P43

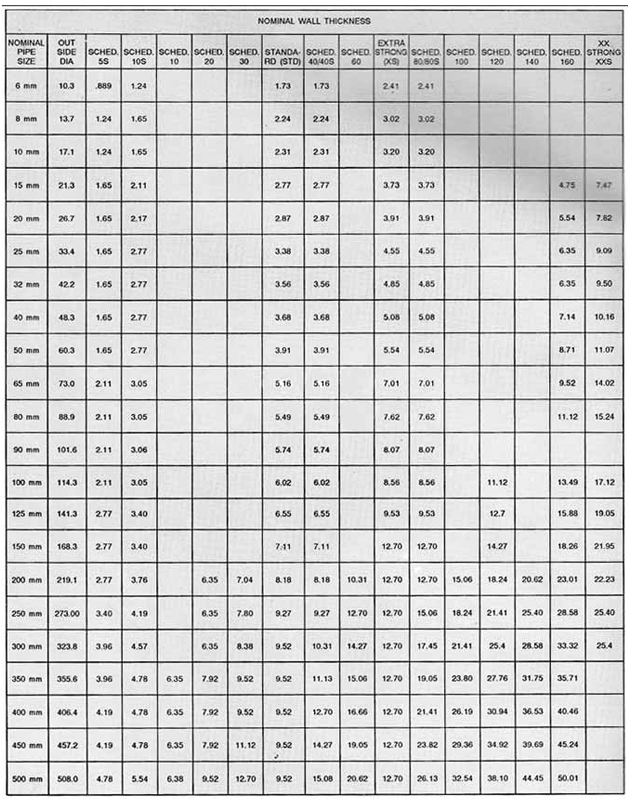

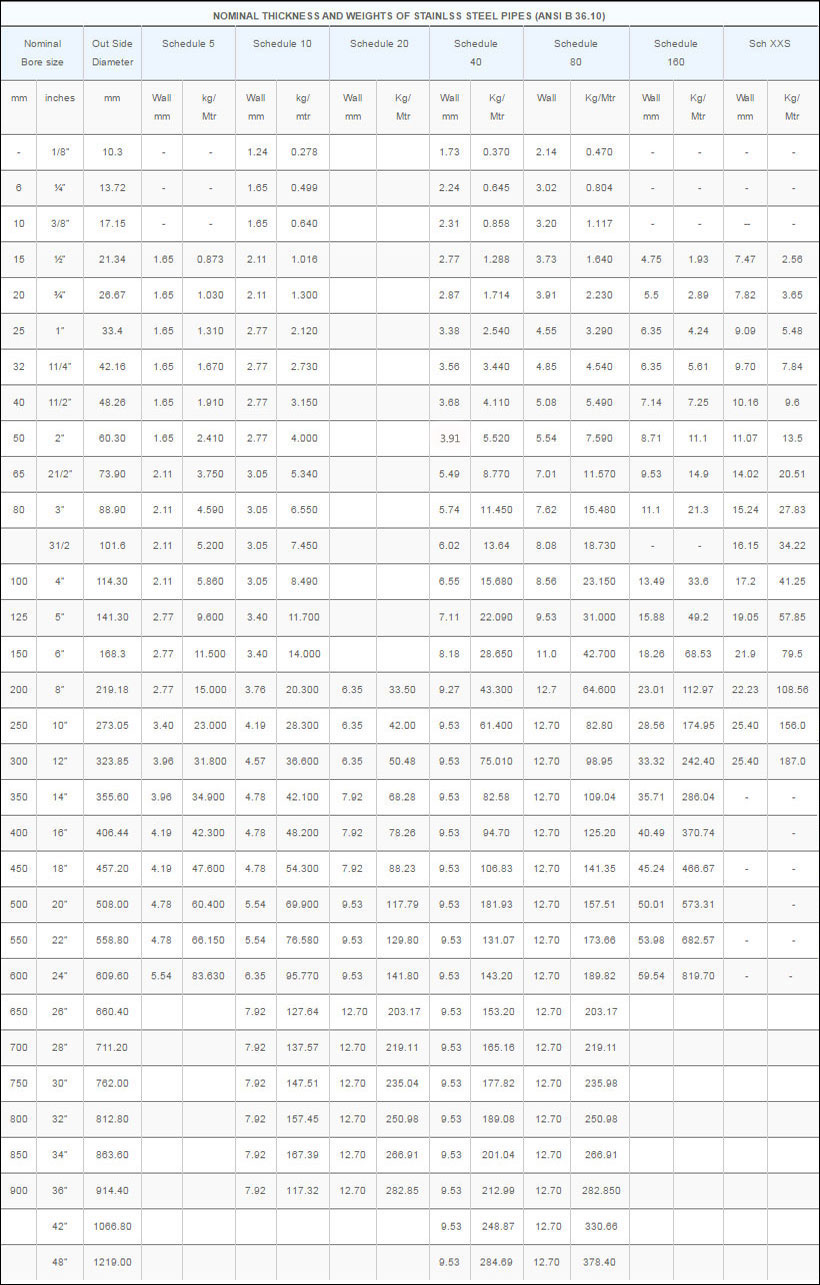

STAINLESS STEEL PIPE

Size:	6mm to 500mm
Thickness:	Sch 5, 10, 40

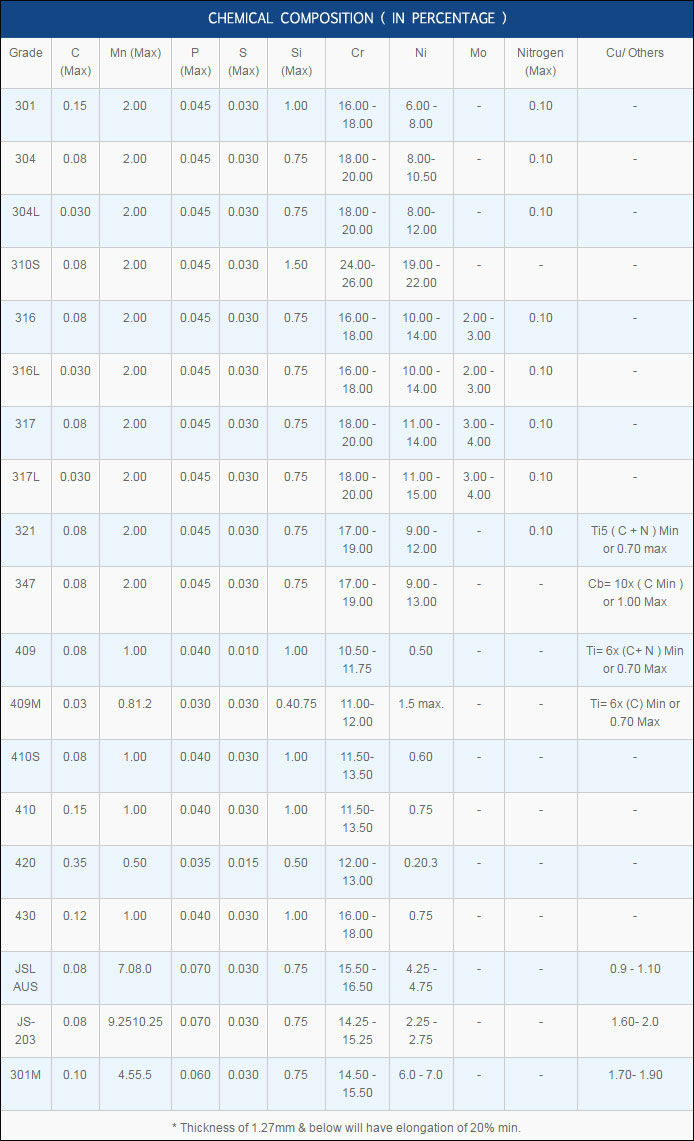

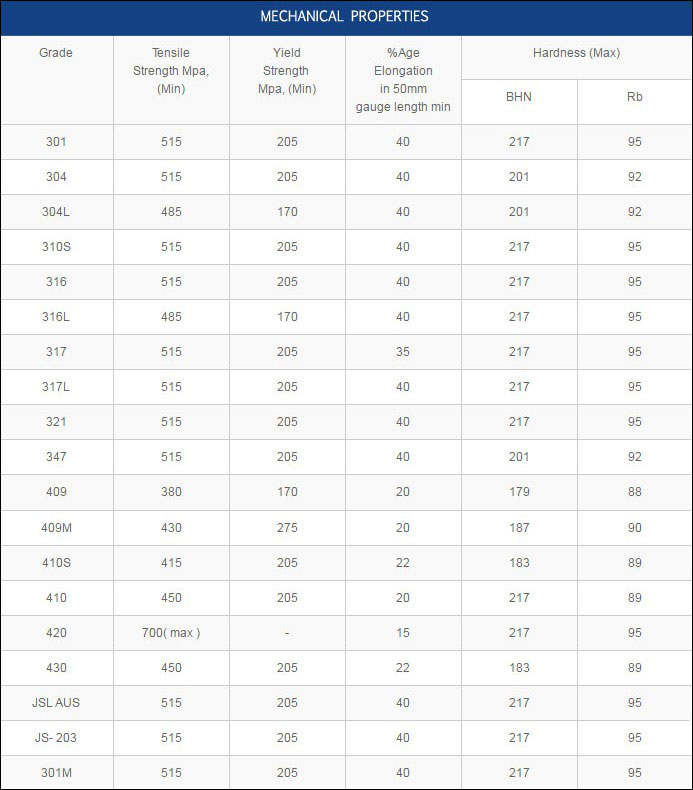

Specification:	202, 304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430

SEAMLESS PIPE

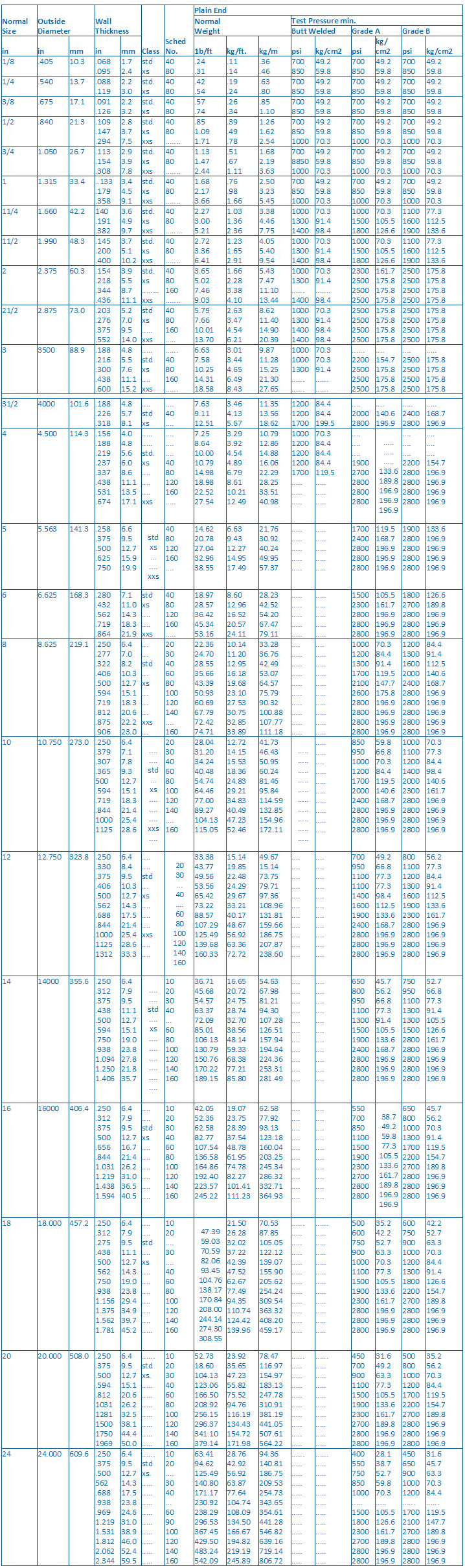

Size	1/4" NB TO 24" NB IN Sch 40,60,80,120,160 & XXS. (Carbon steel)
Carbon Steel: Specifications	ASTM A 53, A 106, A 179, API 5L/5LX, BSS, 3059, 182, 806, 3601, 3602, DIN 17175. 2448 etc.

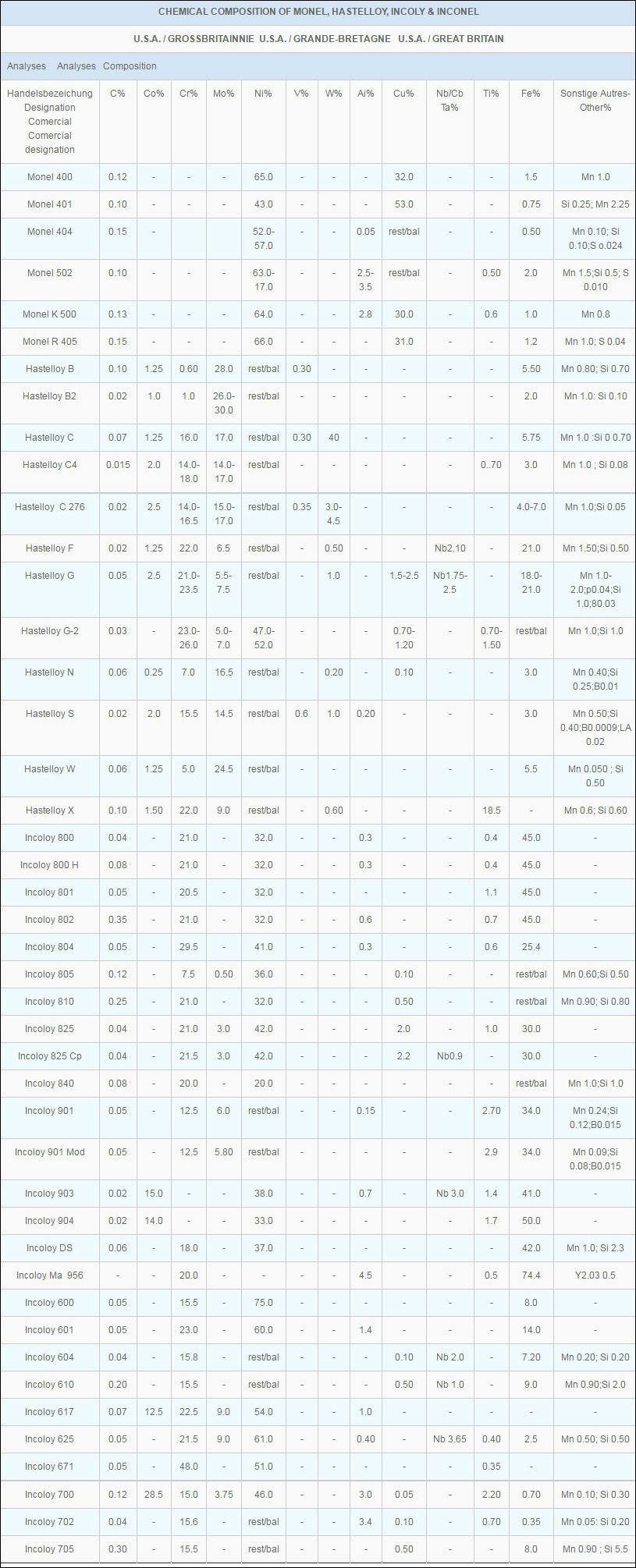

Non-Ferrous Metal

Weight Formula

1. 1. Weight of Stainless Steel Pipes & Tubes
   OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr.



2. 2. Sheet Width Required for rolled and welded pipes
   O.D.(mm) - THK(mm) x 3.14=SheetWidth



3. 3. Weight of Stainless Steel Sheets
   Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet



4. 4. Weight of Stainless Steel Circle & Blanks
   OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs.



5. 5. Weight of Stainless Steel Rounds
   Dia.(mm)xdia.(mm) x 0.00623=PerMtr.



6. 6. Weight of Stainless Steel Hexagonal Rods
   Dia.(mm)xDia.(mm) x 0.00679=PerMtr.



7. 7. Weight of Stainless Steel Square Bars
   Dia.(mm)xDia.(mm) x 0.00787=PerMtr.



8. 8. Weight of Carbon Steel Pipes & Tubes
   Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr.



9. 9. Weight of Carbon Steel Sheets & Plates
   Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet



10. 10. Weight of Copper Pipes
    OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr.



11. 11. Weight of Lead Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr.



12. 12. Weight of Lead Sheets(appro.)
    Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet



13. 13. Weight of Alluminium Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr.



14. 14. Weight of Alluminium Sheets(appro.)
    Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet

    Tensile Strength Conversion Table
    1. Kg/mm2 x 9.81 = N/mm2=MPa
    2. PSi x 0.0007 = Kg/mm2
    3. KSi x 1000 = PSi
    4. Kg/mm2 x 1.422 = KSi
