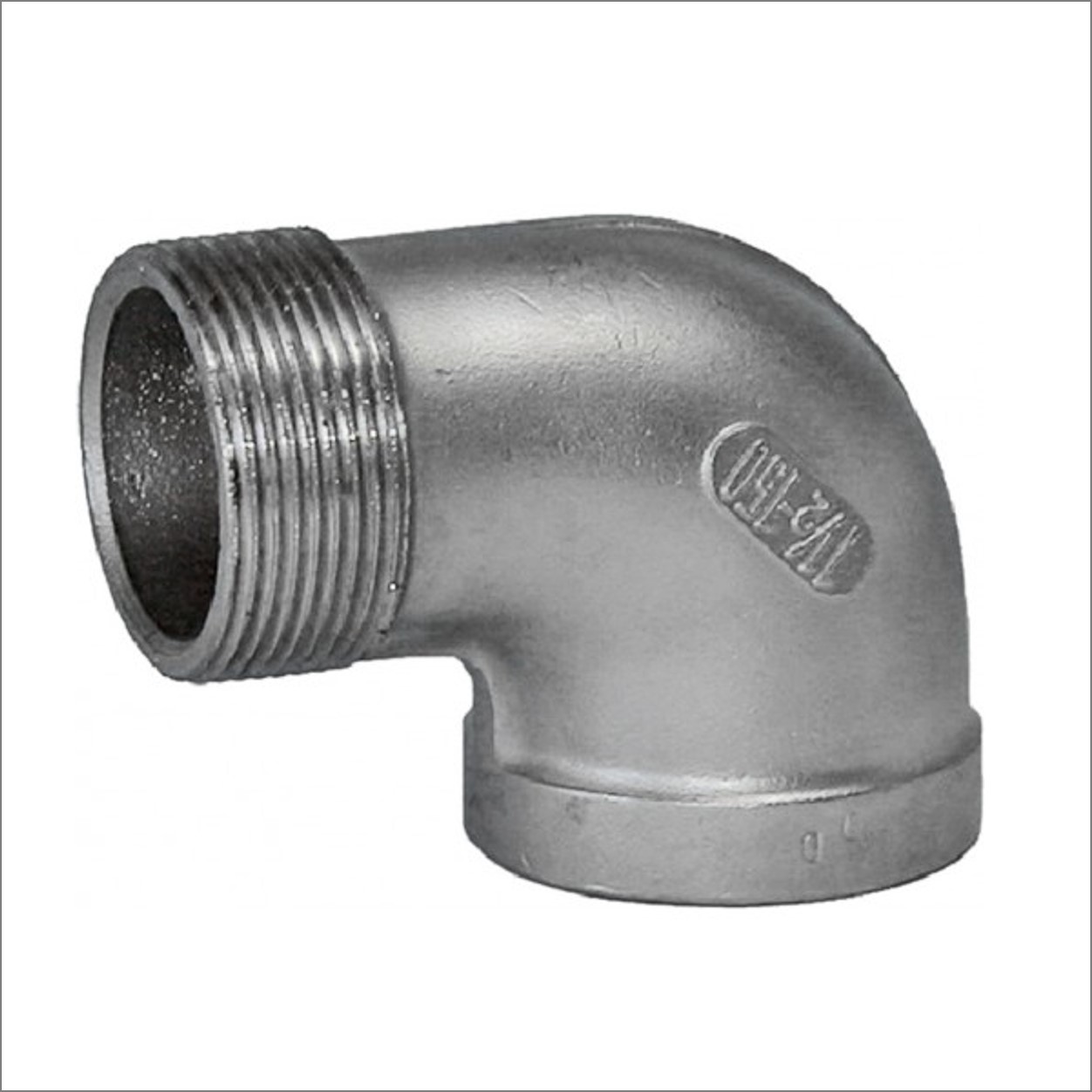

Blossom Steel & Engineering Co are Manufacturers Of 90 Degree Threaded Elbow. We are outstanding amongst other Manufacturers of ASME B16.11 90 Degree Threaded Elbow in India. We accomplish a Lot of reverence by our customers owing to its dimensional accuracy, high strain thikness, utilization resistantancy and Quality things like Stainless Steel 90 Degree Threaded Elbow, Carbon Steel Screwed 90 Degree Threaded Elbow Fittings and Alloy Steel 90 Degree Threaded Elbow. 90 Degree Threaded Elbow are manufactured by exhibited plans and from the most amazing quality materials; the outlet parts we Supply are Suitable for a collection of Heavy Duty Applications. We Supply High Quality 90 Degree Threaded Elbow World Wide from Classes 2000 LBS to 9000 LBS.
Standard Specification For Forged Threaded / Screwed Elbow
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form :90 Degree Threaded Elbow
Material & Grades of Forged Threaded / Screwed Elbow :
Stainless Steel Forged Threaded / ScrewedElbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Threaded / Screwed Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Threaded / Screwed Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Threaded / Screwed Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Threaded / Screwed Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded / Screwed Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
ASME B16.11 Dimensions 90 Degree Threaded Elbows - NPS 1/2 to 4 - 2000 LBS
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | |
|---|---|---|---|---|---|
| B | J | D | G | 90° A |
|
| 1/2 | 10.9 | 13.6 | 33 | 3.18 | 28 |
| 3/4 | 12.7 | 13.9 | 38 | 3.18 | 33 |
| 1 | 14.7 | 17.3 | 46 | 3.68 | 38 |
| 1¼ | 17 | 18 | 56 | 3.89 | 44 |
| 1½ | 17.8 | 18.4 | 62 | 4.01 | 51 |
| 2 | 19 | 19.2 | 75 | 4.27 | 60 |
| 2½ | 23.6 | 28.9 | 92 | 5.61 | 76 |
| 3 | 25.9 | 30.5 | 109 | 5.99 | 86 |
| 4 | 27.7 | 33 | 146 | 6.55 | 106 |
ASME B16.11 Dimensions 90 Degree Threaded Elbows - NPS 1/2 to 4 - 3000 LBS
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | |
|---|---|---|---|---|---|
| B | J | D | G | 90° A |
|
| 1/2 | 10.9 | 13.6 | 38 | 4.09 | 33 |
| 3/4 | 12.7 | 13.9 | 46 | 4.32 | 38 |
| 1 | 14.7 | 17.3 | 56 | 4.98 | 44 |
| 1¼ | 17 | 18 | 62 | 5.28 | 51 |
| 1½ | 17.8 | 18.4 | 75 | 5.56 | 60 |
| 2 | 19 | 19.2 | 84 | 7.14 | 64 |
| 2½ | 23.6 | 28.9 | 102 | 7.65 | 83 |
| 3 | 25.9 | 30.5 | 121 | 8.84 | 95 |
| 4 | 27.7 | 33 | 152 | 11.18 | 114 |
ASME B16.11 Dimensions 90 Degree Threaded Elbows - NPS 1/2 to 4 - 6000 LBS
| NPS | Minimum Length of Thread |
Outside Diameter of Band |
Minimum Wall Thickness |
Center to End | |
|---|---|---|---|---|---|
| B | J | D | G | 90° A |
|
| 1/2 | 10.9 | 13.6 | 46 | 8.15 | 38 |
| 3/4 | 12.7 | 13.9 | 56 | 8.53 | 44 |
| 1 | 14.7 | 17.3 | 62 | 9.93 | 51 |
| 1¼ | 17 | 18 | 75 | 10.59 | 60 |
| 1½ | 17.8 | 18.4 | 84 | 11.07 | 64 |
| 2 | 19 | 19.2 | 102 | 12.09 | 83 |
| 2½ | 23.6 | 28.9 | 121 | 15.29 | 95 |
| 3 | 25.9 | 30.5 | 146 | 16.64 | 106 |
| 4 | 27.7 | 33 | 152 | 18.67 | 114 |
General notes:
- Dimensions are in millimeters unless otherwise indicated.
- Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
