Elbow 45 Degree
Elbow 45 Degree
Elbow 45 Degree Manufacturers, Elbow 45 Degree Suppliers, Elbow 45 Degree Exporters, Elbow 45 Degree Importers, Leading Exporters Of Elbow 45 Degree, Leading Suppliers Of Elbow 45 Degree. Forged Threaded 45 Deg. Elbow, ASTM A182 SS 45 Deg Elbows, 45 Degree Elbow Dimensions, Alloy Steel 45 Degree Forged Screwed Pipe Elbow, Nickel Alloy 200 45 Degree Elbow, Threaded Fittings 45° Elbow, 45 Deg. Forged Screwed Elbow, High Quality 45° Threaded Elbow Manufacturer in Mumbai, India.
Elbow 45 Degree Manufacturers in Mumbai, Elbow 45 Degree Suppliers in Mumbai, Elbow 45 Degree Exporters in Mumbai, Elbow 45 Degree Importers in Mumbai, Leading Exporters Of Elbow 45 Degree in Mumbai, Leading Suppliers Of Elbow 45 Degree in Mumbai. Stockist of Stainless Steel Threaded 45 Deg. Elbow, Forged Threaded Elbow 45 Degree, Screwed Long Radius 45 Degree Elbows, 45° Short Radius Threaded Elbow Dealer in India, Global Supplier of ANSI B16.11 45 Deg Forged Threaded Elbow, ASME B16.11 45 deg Screwed Elbow, 45 Degree Elbow 3000LB Threaded.
Elbow 45 Degree Manufacturers in India, Elbow 45 Degree Suppliers in India, Elbow 45 Degree Exporters in India, Elbow 45 Degree Importers in Mumbai, Leading Exporters Of Elbow 45 Degree in India, Leading Suppliers Of Elbow 45 Degree in India. Inconel Forged Screwed 45 Degree Elbow, MSS SP-79 and MSS SP-83 Threaded 45 Deg. Elbow, 45 Degree Elbow 3000LB Threaded, Stockholder Of 45° Threaded Elbow, BS3799 Socketweld 45 Degree Elbow Wholesaler, Best Price of Duplex Steel 45 Degree Threaded Elbow, Hastelloy C22 45 Deg. Screwed Pipe Elbow, Copper Nickel 45 Deg Threaded Pipe Elbow Exporter, Alloy 20 45° Screwed Elbow Traders in India.

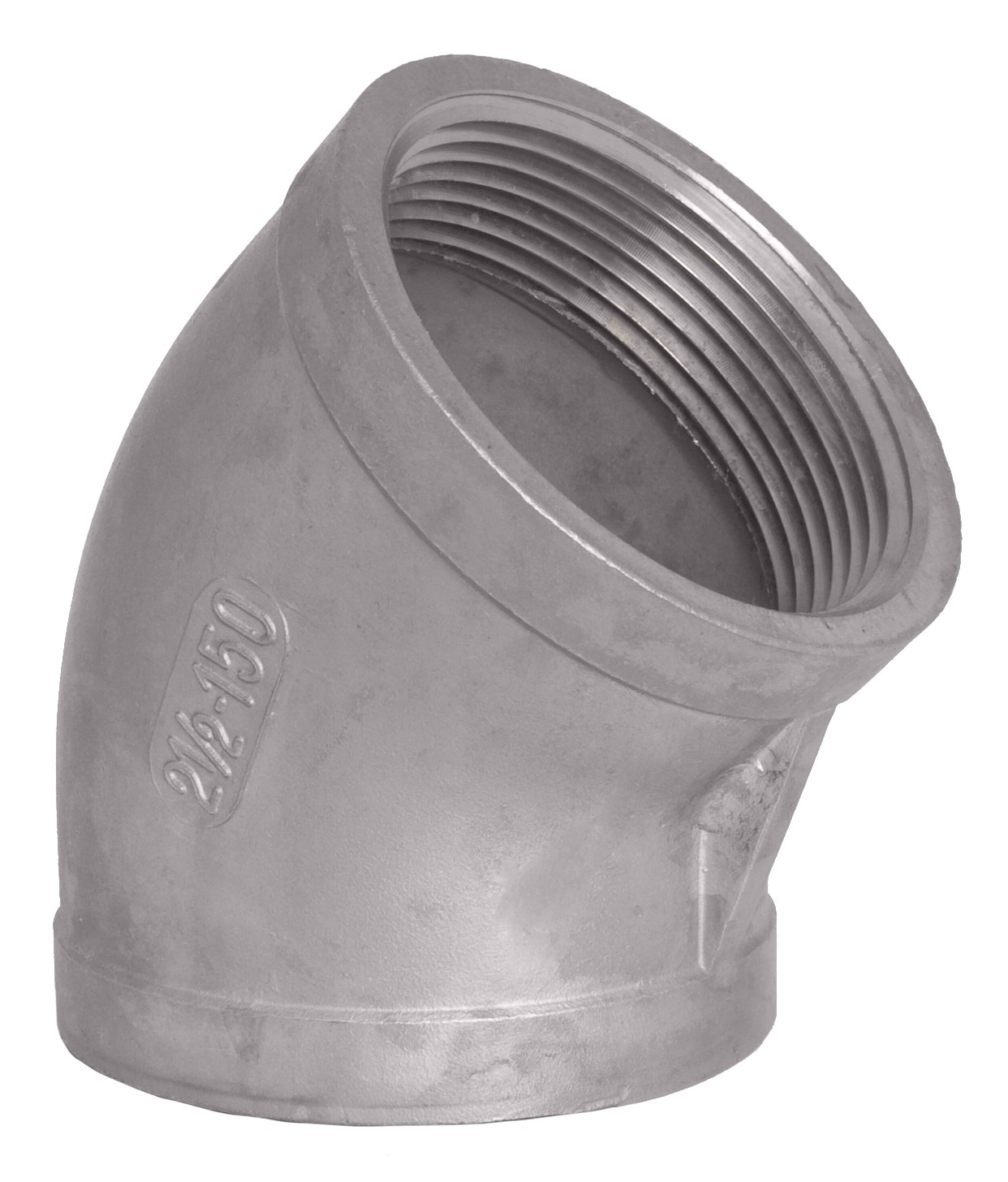

Blossom Steel Engineering & Co Are Manufacturers Of 45 Degree Threaded Elbow. We are exceptional contrasted with different Manufacturers of ASME B16.11 45 Degree Threaded Elbow in India. We achieve a Lot of worship by our clients inferable from its dimensional exactness, high weight thickness, breaking down resistantancy and Quality things like Stainless Steel 45 Degree Threaded Elbow, Carbon Steel Screwed 45 Degree Threaded Elbow Fittings and Alloy Steel 45 Degree Threaded Elbow. 45 Degree Threaded Elbow are produced by shown plans and from the most essential quality materials; the outlet parts we Supply are Suitable for an accumulation of Heavy Duty Applications. We Supply High Quality 45 Degree Threaded Elbow World Wide from Classes 2000 LBS to 9000 LBS.
Standard Specification For Forged Threaded / Screwed Elbow
Dimensions : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Pressure Class : 3000 LBS, 6000 LBS, 9000 LBS
Form :45 Degree Threaded Elbow
Material & Grades of Forged Threaded / Screwed Elbow :
Stainless Steel Forged Threaded / ScrewedElbow :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Threaded / Screwed Elbow :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Threaded / Screwed Elbow :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Threaded / Screwed Elbow :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Threaded / Screwed Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded / Screwed Elbow :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Dimensions threaded elbows - 45° - NPS 1/2 to 4 - 2000 LBS - ASME B16.11
| NPS | Outside Diameter of Band |
Center to End | |
|---|---|---|---|
| D | 90° A |
45° C |
|
| 1/2 | 33 | 28 | 22 |
| 3/4 | 38 | 33 | 25 |
| 1 | 46 | 38 | 28 |
| 1¼ | 56 | 44 | 33 |
| 1½ | 62 | 51 | 35 |
| 2 | 75 | 60 | 43 |
| 2½ | 92 | 76 | 52 |
| 3 | 109 | 86 | 64 |
| 4 | 146 | 106 | 79 |
Dimensions threaded elbows - 45° - NPS 1/2 to 4 - 3000 LBS -
| NPS | Outside Diameter of Band |
Center to End | |
|---|---|---|---|
| D | 90° A |
45° C |
|
| 1/2 | 38 | 33 | 25 |
| 3/4 | 46 | 38 | 28 |
| 1 | 56 | 44 | 33 |
| 1¼ | 62 | 51 | 35 |
| 1½ | 75 | 60 | 43 |
| 2 | 84 | 64 | 44 |
| 2½ | 102 | 83 | 52 |
| 3 | 121 | 95 | 64 |
| 4 | 152 | 114 | 79 |
Dimensions threaded elbows - 45° - NPS 1/2 to 4 - 6000 LBS - ASME B16.11
| NPS | Outside Diameter of Band |
Center to End | |
|---|---|---|---|
| D | 90° A |
45° C |
|
| 1/2 | 46 | 38 | 28 |
| 3/4 | 56 | 44 | 33 |
| 1 | 62 | 51 | 35 |
| 1¼ | 75 | 60 | 43 |
| 1½ | 84 | 64 | 44 |
| 2 | 102 | 83 | 52 |
| 2½ | 121 | 95 | 64 |
| 3 | 146 | 106 | 79 |
| 4 | 152 | 114 | 79 |
General notes:
- Dimensions are in millimeters unless otherwise indicated.
- Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
ASME B16.11 Forged Threaded / Screwed Elbow Available Types
| Forged Threaded Elbow 45 Degree | Forged Screwed Long Radius 45 Degree Elbows |
| 150 lb. Threaded Fittings Pipe Elbow | Threaded 45° Short Radius Elbow |
| ASME B16.11 45 deg Threaded Elbow | 45 Degree Elbow 3000LB Threaded |
| Stainless Steel 45 Degree Screwed Pipe Elbow Suppliers | SS 45 Deg. Forged Screwed Elbows |
| ANSI B16.11 45 Degree Forged Elbow Dealer | BS 3799 Forged 45 Degree Screwed Elbow Exporter |
| Forged Threaded 45 Deg Elbow Stockholder | Threaded 45° Pipe Elbow Distributors |
| Carbon Steel Threaded 45deg.Elbow | High Quality Threaded 45° Elbow Manufacturer |
| ASTM A182 Threaded Stainless Steel 45 Deg Elbows | Duplex Steel 45° Threaded Pipe Elbow |
| Super Duplex Steel 45 Deg Screwed Elbow | Copper Nickel Threaded 45 Deg Elbow |
| High Nickel Alloy 45° Forged Threaded Elbow | Hastelloy Threaded 45° Pipe Elbow Stockist |
| Titanium 45 Degree Screwed Elbow | Inconel Threaded 45 Deg Pipe Elbow |
