Blossom Steel & Engineering Co is a dynamic gathering, which was developed to consider creating solicitations of ASME B16.5 Class 150 Slip on Flanges standards in Slip on Flanges, Weld Neck Flanges, Blind Flanges in all materials like Stainless Steel, Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Flanges which meets with national and overall quality models and making base which claims sorts of rigging agreeing to worldwide particular level and is all around outfitted with a whole course of action of bleeding edge plasma refining kinds of apparatus.
SPECIFICATIONS OF ASME B16.5 CLASS 150 SLIP ON FLANGES
Stainless Steel ANSI B16.5 Class 150 Slip On Flanges| Carbon Steel ANSI B16.5 Class 150 Slip On Flanges| Nickel Alloys ANSI B16.5 Class 150 Slip On Flanges
Size: 1/2" (DN15) ~ 60" (DN1500)
Pressure: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500
ASME B16.5 Class 150 Slip On Flanges Type: Weld Neck Flanges, Blind Flanges and Slip On Flanges
Face Type: Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Coating: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Dimension:
ANSI/ASME B16.5, ANSI/ASME B16.47 Series A (MSS SP-44), ANSI/ASME B16.47 Series B (API 605), ANSI/ASME B16.36, ANSI/ASME B16.48 (API 590)
|
Execution |
ASME |
|
Welding Neck Flanges |
B 16.5 / 16:47 |
|
Blind Flanges |
B 16.5 / 16:47 |
|
Slip On Flanges |
B 16.5 |
|
Lap Joint Flanges |
B 16.5 |
|
Threaded Flanges |
B 16.5 |
|
Socket Welding Flanges |
B 16.5 |
|
Long Welding Neck Flanges |
B 16.5 |
|
Orifice Flanges |
B 16:36 |
|
Spectacle Blind |
B 16:38 |
|
Flanges to BS 3293 / API 6A, as well as drawing |
|

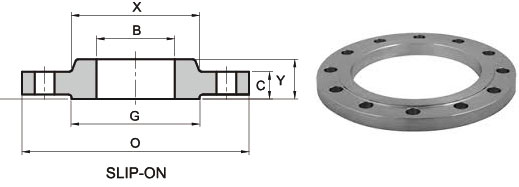

ANSI/ASME/ASA B16.5 150lb/sq.in. Flange SO-RF | ||||||||||
ø | D | b | g | m | J | h | k | Holes | l | Kg. |
1/2" | 88,9 | 11,1 | 34,9 | 30,2 | 22,3 | 15,9 | 60,3 | 4 | 15,9 | 0,400 |
3/4" | 98,4 | 12,7 | 42,9 | 38,1 | 27,7 | 15,9 | 69,8 | 4 | 15,9 | 0,700 |
1" | 107,9 | 14,3 | 50,8 | 49,2 | 34,5 | 17,5 | 79,4 | 4 | 15,9 | 0,800 |
1 1/4" | 117,5 | 15,9 | 63,5 | 58,8 | 43,2 | 20,6 | 88,9 | 4 | 15,9 | 1,100 |
1 1/2" | 127,0 | 17,5 | 73,0 | 65,1 | 49,5 | 22,2 | 98,4 | 4 | 15,9 | 1,400 |
2" | 152,4 | 19,0 | 92,1 | 77,8 | 62,0 | 25,4 | 120,6 | 4 | 19,0 | 2,200 |
2 1/2" | 177,8 | 22,2 | 104,8 | 90,5 | 74,7 | 28,6 | 139,7 | 4 | 19,0 | 3,600 |
3" | 190,5 | 23,8 | 127,0 | 107,9 | 90,7 | 30,2 | 152,4 | 4 | 19,0 | 4,100 |
3 1/2" | 215,9 | 23,8 | 139,7 | 122,2 | 103,4 | 31,7 | 177,8 | 8 | 19,0 | 5,200 |
4" | 228,6 | 23,8 | 157,2 | 134,9 | 116,1 | 33,3 | 190,5 | 8 | 19,0 | 5,600 |
5" | 254,0 | 23,8 | 185,7 | 163,6 | 143,8 | 36,5 | 215,9 | 8 | 22,2 | 6,300 |
6" | 279,4 | 25,4 | 215,9 | 192,1 | 170,7 | 39,7 | 241,3 | 8 | 22,2 | 7,500 |
8" | 342,9 | 28,6 | 269,9 | 246,1 | 221,5 | 44,4 | 298,4 | 8 | 22,2 | 12,600 |
10" | 406,4 | 30,2 | 323,8 | 304,8 | 276,3 | 49,2 | 361,9 | 12 | 25,4 | 18,500 |
12" | 482,6 | 31,7 | 381,0 | 365,1 | 327,1 | 55,6 | 431,8 | 12 | 25,5 | 28,000 |
14" | 533,4 | 34,9 | 412,7 | 400,0 | 359,1 | 57,1 | 476,2 | 12 | 28,6 | 36,000 |
16" | 596,9 | 36,5 | 469,9 | 457,2 | 410,5 | 63,5 | 539,7 | 16 | 28,6 | 46,000 |
18" | 635,0 | 39,7 | 533,4 | 504,8 | 461,8 | 68,3 | 577,8 | 16 | 31,7 | 50,000 |
20" | 698,5 | 42,9 | 584,2 | 558,8 | 513,1 | 73,0 | 635,0 | 20 | 31,7 | 64,000 |
22" | 749,3 | 46,0 | 641,2 | 609,6 | 564,4 | 79,4 | 692,1 | 20 | 34,9 | 72,000 |
24" | 812,8 | 47,6 | 692,1 | 663,6 | 615,9 | 82,5 | 749,3 | 20 | 34,9 | 89,000 |
